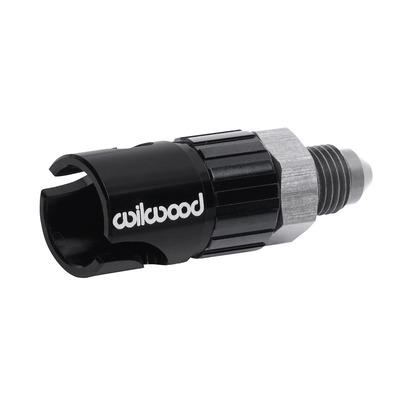

Female fitting with a -3 AN Male Flare
Wilwood dry break quick connect/disconnect -3 AN fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flex-line fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.
Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with male fittings on each end.
Features:
-Engineered explicitly for high-pressure hydraulic brake fluid systems.
-Makes replacing hydraulic brake components for wear, race damage or tuning instantaneous.
-3AN- ends make connection to braided stainless flexlines easy.
-Precision-machined from aluminum, then Type-III hard anodized for durability.
-Lightweight - just 0.6 ounces per fitting.
-Install proper ends on vehicle, components, and pre-bled spares to maximize efficiency.
