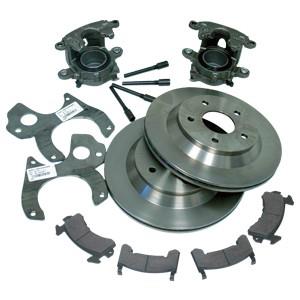

Rear-end Assemblies and Brake Components

2 BR-1755 metric rotors
1 CB-1750-RT metric bolt-on caliper bracket
1 CB-1750-LT metric bolt-on caliper bracket
1 CB-2000L metric caliper w/ bolts
1 CB-2000R metric caliper w/ bolts
1 WIL-150-8936K GM metric brake pads

Brake Rotor, 10.500in OD, 1.000in Thick, 5 x 5.00in Bolt Pattern, Steel, Natural, GM Metric Style, Each

*FITS 79-81 GM METRIC WITH LARGE OUTER BEARING. 5X5 BOLT CIRCLE 5/8 COARSE STUD 10.5 DIAMETER 1 THICK WEIGHT 16.9LB (GS) * RECOMMENDED COMPONENTS: ** BEARING KIT IS USB 9851-8500 ** ** DUST CAP IS USB 9851-8501 ** ** SEAL KIT IS USB9851-8520 ** DOUBLE DRILLED , 5X 4 3/4 ON INNER BOLT CIRCLE MOR46150 STUDS WILL WORK

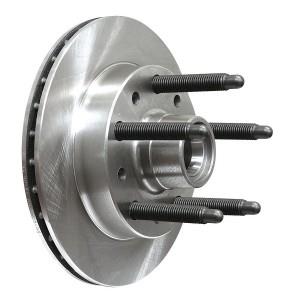

Brake Rotor, Modified Hub and Rotor, 10.500" Diameter, 1" Thick, 5 x 5.00in Bolt Pattern; Iron; GM Metric Spindle 1979-88

For GM Metric Rotors
Wilwood GM Metric front hub installation kit. Includes OEM style lock nut, bearing and seal kit.

11" ROTOR; 0.31" WIDTH; 3.2 lbs; 3 x 5" Bolt Pattern

*DETAILS:
Width- 0.31in
Diameter- 11.00in
Bolt Circle- 3 x 5.00in
Mount Hole Size- 0.516in
Lug ID / Registration- 4.10in
Material- Steel
Vane Count- Solid
Weight- 3.20lbs
Rotor Type- Steel Scalloped
Rotor Style- Drilled
Surface Finish- Black Electro Coat
Bedded- NO
Balanced- NO
UPC- 889545037678
**Suitable for open wheel Sprint, Midget etc. on dirt or pavement racing applications, light duty.
**NOT FOR STREET USE.

-Application: Hybrid
-Surface: Smooth
-Thickness: .810"
-Weight: 17.1 lbs
-Bolt Pattern: 5 on 5"
-4" Long Studs
-Right/Left Side

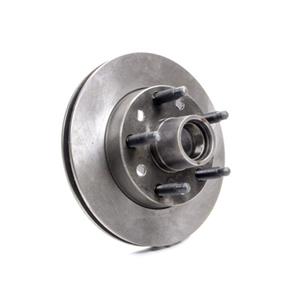

*This rotor combines the strength of a 75-81 Ford-style hub (Granada) with the lighter design of the metric brake rotor for an unbeatable lightweight and durable package. AFCO engineers designed this rotor with the latest CAD software and testing methods. Manufactured to withstand rigorous racing environments, the AFCO Hybrid Rotor uses castings designed and built specifically for racing. It will remove up to 13 lbs. of unsprung weight on the front of your car to improve front to rear weight bias and wheel control. Note: This rotor is not recommended for asphalt applications.

**10.13 diameter 5/8” coarse studs with a 5 on 5 bolt pattern (DO NOT drill out for 5 on 4-3/4”)

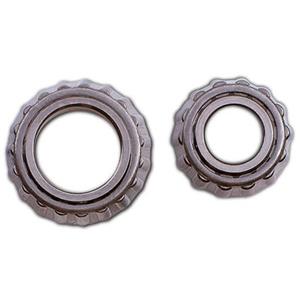

Wheel Bearing Kit; Inner and Outer; Steel; GM Metric Hub 1979-88; Kit
Inner and Outer bearings for AFC9850-6500 GM Metric Front Rotor.

Wheel Bearing Kit, Inner and Outer, Hub Seal / Spindle Nut / Dust Cap / Cotter Pin, Steel, GM Metric, Kit

6 7/8" Dia. x 1/8" Thick; Drilled Steel; Includes 5-bolt installation kit.

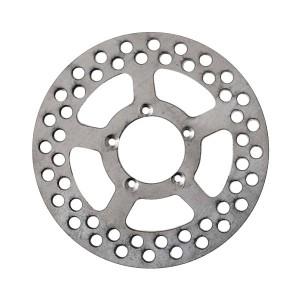

*The Keizer Micro Sprint Brake Rotor is a 6-7/8" diameter drilled steel brake rotor that has a 1/8" thickness and 5 on 3.375" mounting bolt pattern that matches up to the back of a Keizer 10P4 Micro Sprint Left Side Direct Mount Wheel Center. A 3/8" rotor spacer is available (sold separately).

Proudly made in the USA.
