Rear-end Assemblies and Brake Components

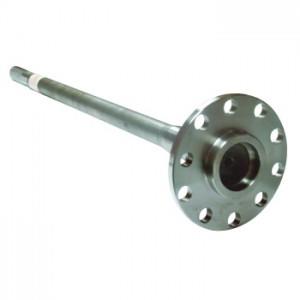

Axle Bolt pattern will fit on a 5 x 4-3/4" and a 5 x 5" bolt pattern.
Bolt patterns are drilled for 5/8" studs.

• Master Ring and Pinion Gear Installation Kit
• GM 7.5" 10-Bolt
• Kit Includes Koyo Bearings, Brush, Cover Gasket (or RTV), Crush Sleeve (or Preload Shim Pack), Marking Compound, Pinion Nut, Pinion Seal, Ring Gear Bolts, Shims (Pinion, Carrier), and Thread Locking Compound

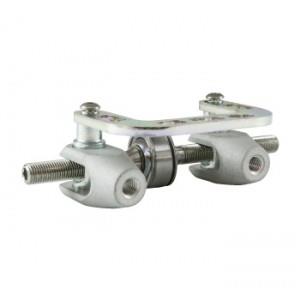

This is a replacement bias bar kit for the reverse mount brake pedal from AFCO.

**Kit includes: 1 bias rod, 2 clevis, 2 clevis pins, 1 bearing, 2 bearing clips, 2 bore retainer clips, and tie bar assembled.

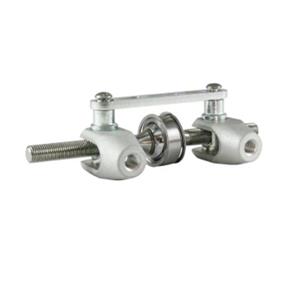

This is a replacement bias bar kit for the forward mount brake pedal from AFCO.

**Kit includes: 1 bias rod, 2 clevis, 2 clevis pins, 1 bearing, 2 bearing clips, 2 bore retainer clips, and tie bar assembled.

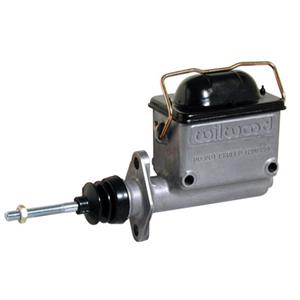

High Volume Master Cylinder; 3/4" Bore; 1.430" Stroke; Aluminum

High Volume Master Cylinder; 7/8" Bore; 1.430" Stroke; Aluminum

Master Cylinder- High Volume; 1in Bore; 1.43in Stroke; Integral Reservoir; Aluminum

Bore size- 3/4"

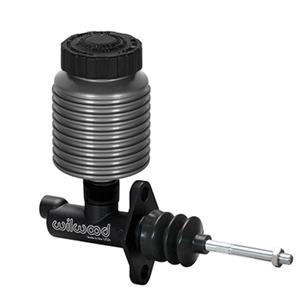

*Wilwood’s Compact Remote Master Cylinder is a staple of motorsports and custom builds. These kits come complete with a billet aluminum reservoir for direct mounting to the body. The finned shape of the reservoir removes weight and increases surface area for passive cooling.

The Compact Master Cylinder is designed for limited space applications requiring the output capacity of a full-size master cylinder. Comes with 1/8” NPT fluid outlet port located at the top of the radius of the cylinder bore, reducing the changes for trapped air. The black E-Coated aluminum body resist corrosion and maintains a durable long lasting finish.
**The Machined Billet Aluminum Reservoir holds 4 fluid ounces of fluid for brake or clutch applications. The dull gray Type III hard anodized finish with a black nylon cap (total of 3.8 ounce weight) comes with an internal rubber bellows seal. This lightweight reservoir comes ready to install direction on Wilwood’s Compact Remote Master Cylinder; fittings to convert the reservoir to remote mount are available from Wilwood.

Features:
-The Wilwood compact master cylinder has been proven in millions of laps on thousands of cars at all levels of motorsports.
-Full 1.12” stroke in an ultra-short 3.37” compact body for installation where space is limited.
-Weighs less than 1-pound, ready to install.
-Master cylinder bore available in six sizes, from .75” to 1.12”.
-Large reservoir holds four fluid ounces.
-Master cylinders are fully rebuildable.
-Standard 2.25” on center two bolt vertical mounting flange.
-Long lasting black E-coat finished master cylinder body.
-Type III hard anodized finish billet aluminum reservoir.
-Designed, manufactured, and tested in the U.S.A.

Bore size- 7/8"
*Wilwood’s Compact Remote Master Cylinder is a staple of motorsports and custom builds. These kits come complete with a billet aluminum reservoir for direct mounting to the body. The finned shape of the reservoir removes weight and increases surface area for passive cooling.

The Compact Master Cylinder is designed for limited space applications requiring the output capacity of a full-size master cylinder. Comes with 1/8” NPT fluid outlet port located at the top of the radius of the cylinder bore, reducing the changes for trapped air. The black E-Coated aluminum body resist corrosion and maintains a durable long lasting finish.
**The Machined Billet Aluminum Reservoir holds 4 fluid ounces of fluid for brake or clutch applications. The dull gray Type III hard anodized finish with a black nylon cap (total of 3.8 ounce weight) comes with an internal rubber bellows seal. This lightweight reservoir comes ready to install direction on Wilwood’s Compact Remote Master Cylinder; fittings to convert the reservoir to remote mount are available from Wilwood.

Features:
-The Wilwood compact master cylinder has been proven in millions of laps on thousands of cars at all levels of motorsports.
-Full 1.12” stroke in an ultra-short 3.37” compact body for installation where space is limited.
-Weighs less than 1-pound, ready to install.
-Master cylinder bore available in six sizes, from .75” to 1.12”.
-Large reservoir holds four fluid ounces.
-Master cylinders are fully rebuildable.
-Standard 2.25” on center two bolt vertical mounting flange.
-Long lasting black E-coat finished master cylinder body.
-Type III hard anodized finish billet aluminum reservoir.
-Designed, manufactured, and tested in the U.S.A.
