Rear-end Assemblies and Brake Components

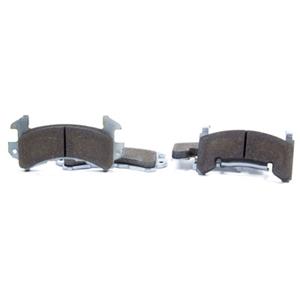

Brake Pads; BP-10 Compound, Medium Friction, Medium Temperature, Wilwood / GM D154 Metric Caliper, Kit

BP-28 COMPOUND

PAD CHARACTERISTICS:
-Medium-high friction pad - low temperature response with flat torque from 100°F-1200°F.
-Smooth predictable pedal feel.
-Medium-low pad wear.
-High-performance track day and race pad.

PAD APPLICATIONS:
-Track day
-Dirt and pavement racing

ROTOR MATERIAL:
-Iron
-Steel
-Stainless Steel
-Titanium

BP-35 COMPOUND

*The BP-35 compound brake pad is aggressive, lining up between then BP-28 and BP-40: High Friction, fade resistant design for high heat/high braking, good pedal feel throughout the race, good for asphalt and dirt short tracks and off-road competition.

These high-temperature racing pads comes mounted on a D154 plates, designed for use with single and dual piston D154 Wilwood calipers as well as the GM-Metric aluminum and iron single piston floater calipers.

*Includes four pads (enough for two wheels).
**Order a quantity of two of this part number to replace pads on all four wheels.

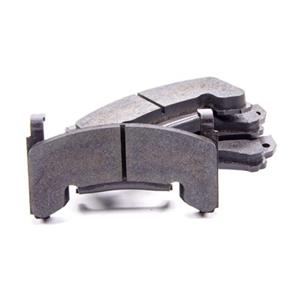

Brake Pads; BP-40 Compound; High Friction- High Temperature; Wilwood/GM D154 Metric Caliper, Kit

*For Narrow Dynalite and Dynapro Radial Mount Calipers; BP-28 Compound
**BP compound SmartPad numbered series represents the latest compounds developed through Wilwood research. Used by top racers in all auto racing genres, they also come standard in most kits for street use. Different formulas offer increasingly aggressive friction and tolerance to high temperature, from BP-10 for spirited street use to BP-40 for extremely demanding racing competition. Multiple friction options allow users to optimize brake response to track conditions and weather. Compatible with all iron, steel, stainless, and titanium rotors within their intended temperature ranges.

**This set of performance brake pads are compatible Wilwood Dynalite Single and Dynapro Single brake calipers. Includes a set of four brake pads, enough to equip a single axle or two wheels.

SPECIFICATIONS:
Wilwood Brake Pad Plate #- 7816
Thickness- 0.60in
Area- 6.36in2
Volume- 3 in3
Bedded- NO

PAD CHARACTERISTICS:
-Medium-high friction pad - low temperature response with flat torque from 100°F-1200°F.
-Smooth predictable pedal feel.
-Medium-low pad wear.
-High-performance street/track and race pad.

PAD APPLICATIONS:
-Street performance
-Track day
-Dirt and pavement racing
-Titanium and stainless

ROTOR MATERIAL:
-Steel
-Stainless Steel
-Titanium

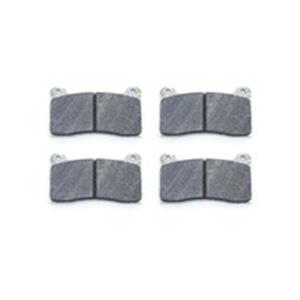

*For Dynalite Single and Dynapro Single Calipers; BP-28 Compound
**BP compound SmartPad numbered series represents the latest compounds developed through Wilwood research. Used by top racers in all auto racing genres, they also come standard in most kits for street use. Different formulas offer increasingly aggressive friction and tolerance to high temperature, from BP-10 for spirited street use to BP-40 for extremely demanding racing competition. Multiple friction options allow users to optimize brake response to track conditions and weather. Compatible with all iron, steel, stainless, and titanium rotors within their intended temperature ranges.

**This set of performance brake pads are compatible Wilwood Dynalite Single and Dynapro Single brake calipers. Includes a set of four brake pads, enough to equip a single axle or two wheels.

SPECIFICATIONS:
Wilwood Brake Pad Plate #- 6812
Thickness- 0.49in
Area- 3 in2
Volume- 1.1 in3
Bedded- NO

PAD CHARACTERISTICS:
-Medium-high friction pad - low temperature response with flat torque from 100°F-1200°F.
-Smooth predictable pedal feel.
-Medium-low pad wear.
-High-performance street/track and race pad.

PAD APPLICATIONS:
-Street performance
-Track day
-Dirt and pavement racing
-Titanium and stainless

ROTOR MATERIAL:
-Steel
-Stainless Steel
-Titanium

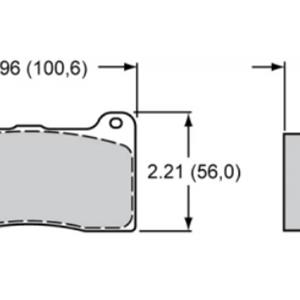

*For Narrow Dynalite and Dynapro Calipers; BP-35 Compound

SPECIFICATIONS:
Wilwood Part #- 150-35-7816K
Pad Plate- 7816
Thickness- 0.60in
Volume- 3 in3
Bedded- NO
UPC- 889545114812

*BP-35 COMPOUND *
PAD CHARACTERISTICS:
-High temperature and friction on iron, steel rotors. For use on all circle track and road racing with high temp fade-resistant performance and low to med pad wear. Very linear feel, increasing torque with rising rotor temperatures and pedal input. ABS-friendly on all race applications.
-Predictable, consistent pedal feel.
-High friction good low, medium response that rises with rotor temp.
-Linear feeling pad with smooth response and great release.
-Low-medium pad wear.

COMPATIBLE WILWOOD CALIPERS:
Billet Narrow Dynalite
Billet Narrow Dynalite Radial Mount
Cast Narrow Dynalite
Forged Narrow Dynalite
Dynapro Dust Seal Radial Mount
Dynapro Radial Mount
Dynapro-13 Dust Seal Radial Mount
Dynapro-13 Radial Mount
Dynapro-ST Radial Mount
Narrow Dynapro Lug Mount

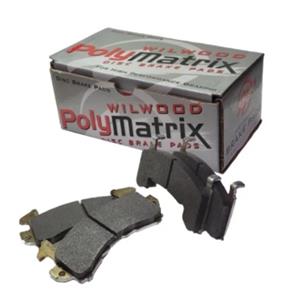

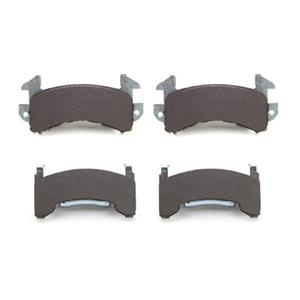

Compound: PolyMatrix A; D154 Plate (Includes D154 Metric)

PAD DIMENSIONS:
Thickness- .52in
Area- 8.7in²
Volume- 2.9in³
Bedded- NO
UPC- 889545035834

PAD CHARACTERISTICS:
-Very aggressive initial response.
-Ultimate high friction pad.
-Immediate low temperature response.
-Medium-low wear rate during sustained high heat braking.
-High heat fade resistance.

PAD APPLICATIONS:
-Racing only - NOT FOR STREET USE.
-Road course
-Oval pavement
-Dirt all classes

ROTOR MATERIAL:
-Steel
-Iron

COMPATIBLE WILWOOD CALIPERS:
-D154 Single & Dual Piston Floater
-D154-Dust Seal Single Piston Floater
-D154-R Single Piston Floater
-D154-R Single Piston Floater
-GM-Metric Single Piston Floater
-GM-Metric-Iron Single Piston Floater
**Sold as a set of four pads, enough for one axle or two wheels.

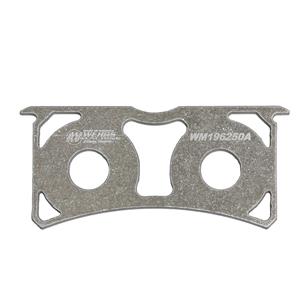

For Superlite Style Brake Calipers; 1/4" Thick

*Wehrs Machine Aluminum Brake Pad Spacers are constructed of CNC machined aluminum to fit specific styles of brake pads. These spacers allow the brake pad to be moved out closer to the brake rotor in cases of a thinner rotor or pads with thinner material.
MADE IN THE U.S.A.
